Bespoke versions of this product can be requested by adding your requirements to the notes section in the quote builder summary
SKU: Preheater Element - Tank Track

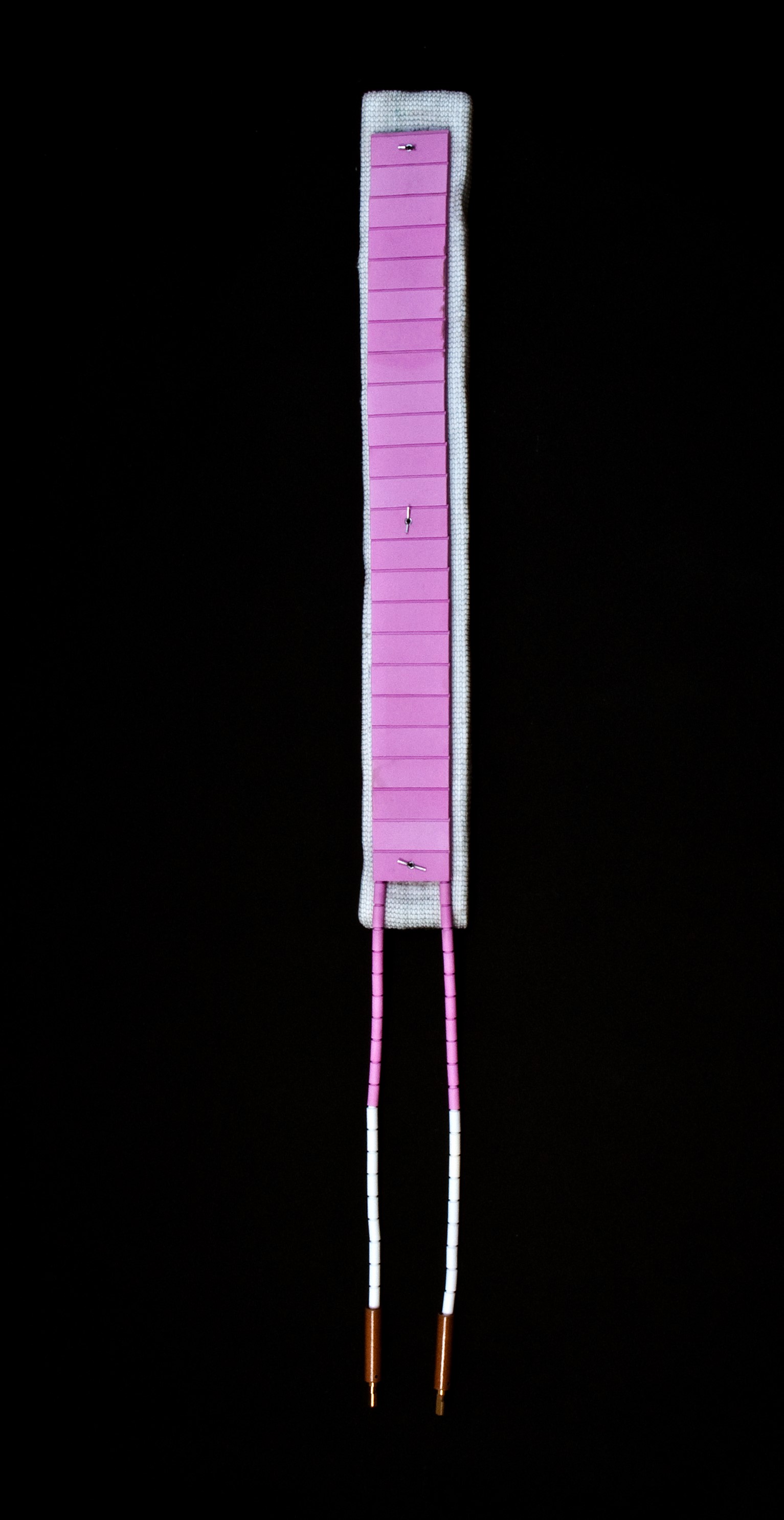

The Tank Track Preheater has the same design concept as the ceramic bead CPP in terms of the insulation backing and stainless steel protection. The regular modular ceramic pad element is however replaced by full width (75mm) beads, giving an overall width of 101mm.
The construction of the element is simple with a facility to accommodate six longitudinal runs of the heater core wire. The standard heater is rated for 60V or 80V operation using a heat treatment transformer as the power source.
| Stock Ref | Width (mm) | Length (mm) | Volts | kW | QTY |
|---|---|---|---|---|---|
| 400331 | 101 | 775 | 60 | 2.7 | |
| 400301 | 101 | 1024 | 80 | 3.6 |
