Bespoke versions of this product can be requested by adding your requirements to the notes section in the quote builder summary
SKU: 100541

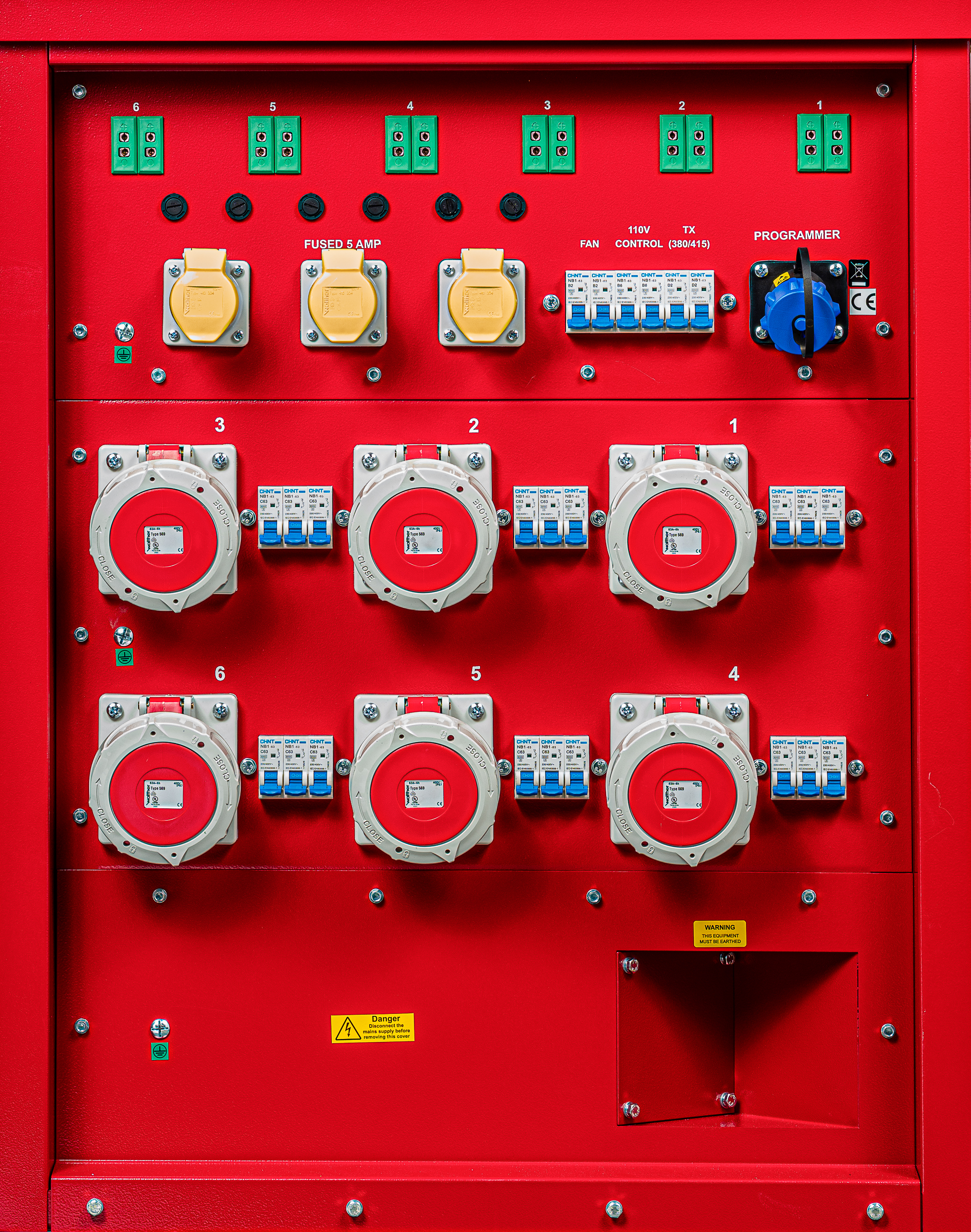

The 6-Channel 3-Phase Distribution/Control Unit has been robustly constructed to provide power to electrical resistance heaters connected to a 3-phase mains voltage electrical supply at 380/440V, 50/60Hz. The unit is suitable for site and workshop working.
Ther output from the unit is split into six individual heating circuits for temperature control. Each output circuit has a switching capacity of 63A, 3-phase, which is sufficient capacity for three standard channel heaters rated at 13kW, 240V connected in star.
Each of the six circuits may be controlled individually using a combination of energy regulators and the integrated channel controllers. Alternatively, fully automatic control is possible by connecting a programmer unit.

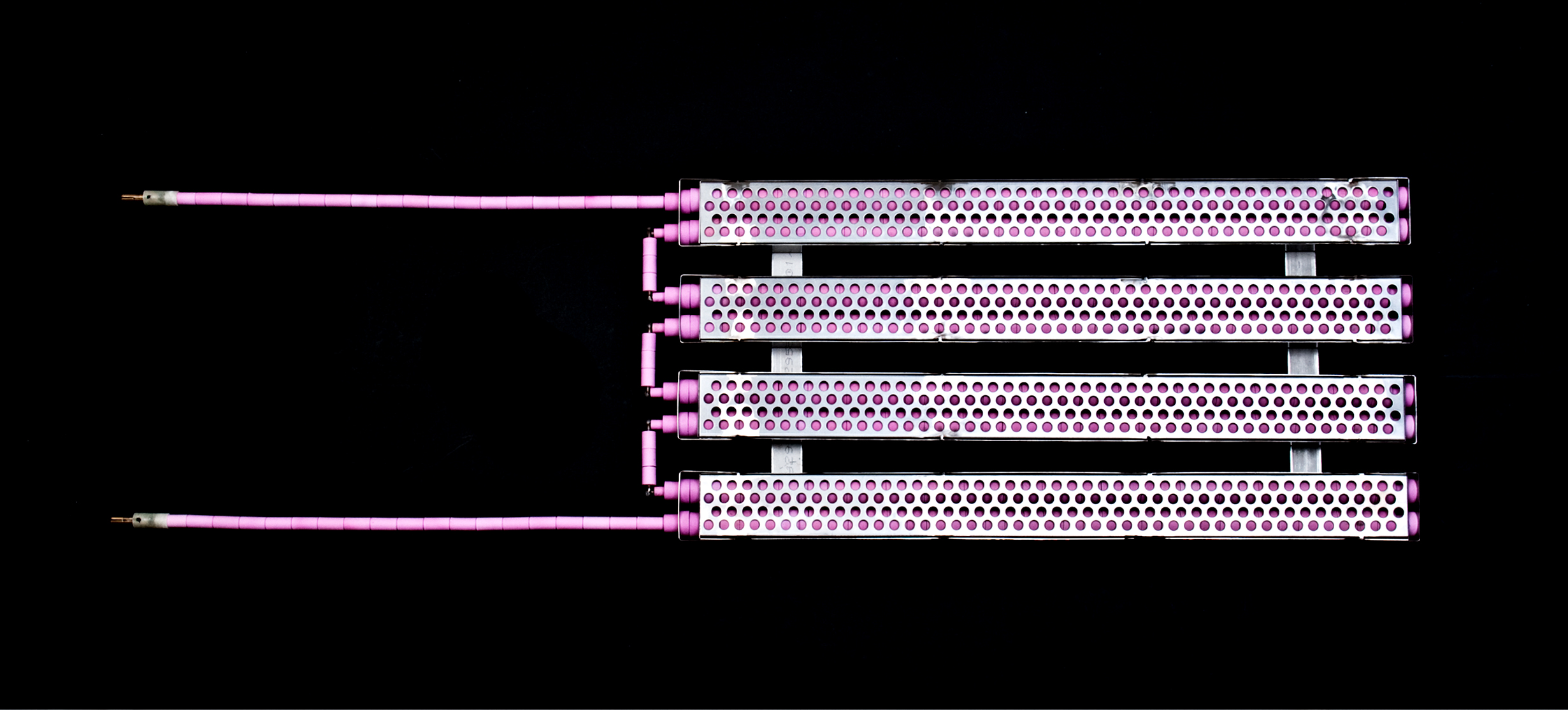

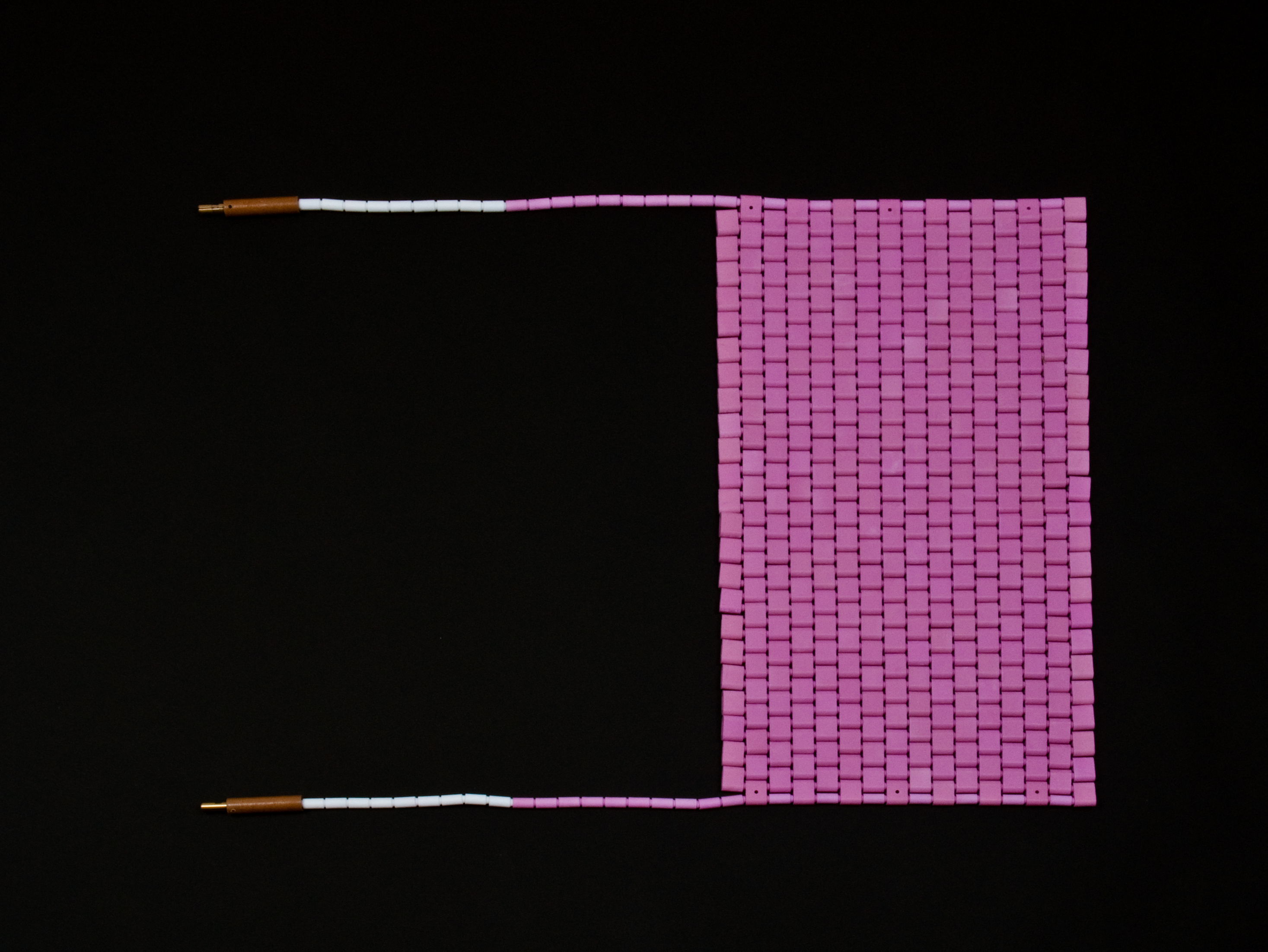

Two heater designs are suitable for use with the unit - the Channel Heater and the 220/240V Ceramic Pad Heater.
If you would like more information about any of Thermal Hires’s products or services, please complete the enquiry form below. Alternatively, you can call us at our Wigan, Hartlepool or Falkirk locations, details below.
